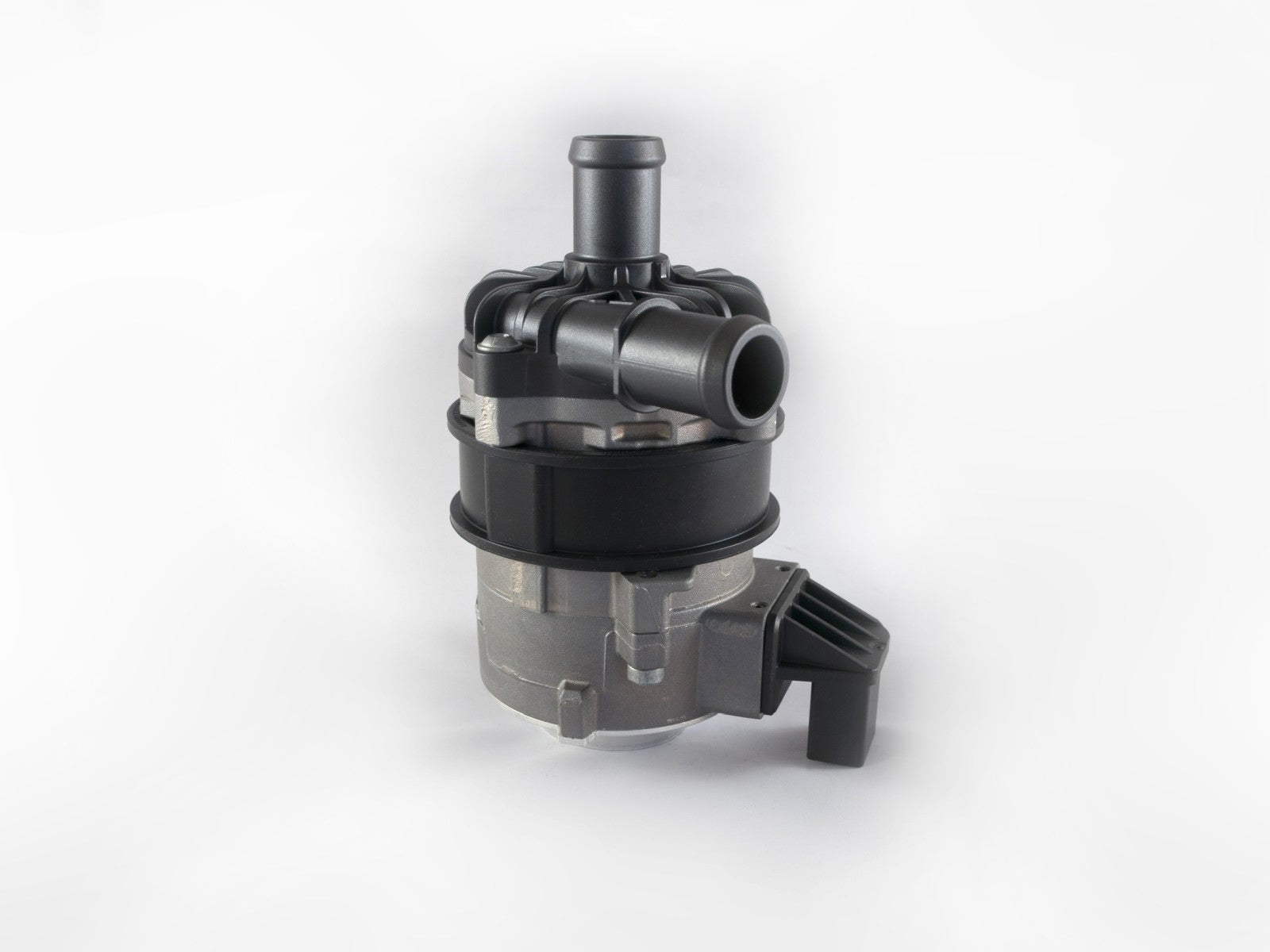

Pierburg CWA100-3 HX Coolant Pump Kit - Plug-n-Play

Pierburg CWA100-3 HX Coolant Pump Kit - Plug-n-Play

CRD brings you a plug and play solution to replace the factory supercharger cooling pump found on the Gen 2 and 3 CTS-V, Gen 5 and 6 Camaro ZL1 and the C7 Z06 Corvette. This pump is a direct replacement for the OEM pump (3.4 GPM). This pump is a new option that outflows the popular Varimax pump by nearly 30%.

The kit will come with a plug and play wiring harness for the vehicle you select and a mounting clamp.

Specifications:

•Name: "Pierburg CWA100"

•Operation voltage: 8-16 volts

•Weight: approx. 1.0 kg

•Current consumption: 8.5A max. / (approx. 0.2mA in standby mode)

•Nominal diff. pressure: ≥ 0.75 bar *

•Flow rate: approx. 30-35 l/min @ 0.75bar / 40-45 l/min @ 0.50bar

•Speed: approx. 7000 rpm

•Temperature range: -40°C – 110°C (water) / -40°C – 120°C (ambient)

•Protection: IP 67 + IP 69 K

Carnage Racing Development does not offer warranties on any electronics
